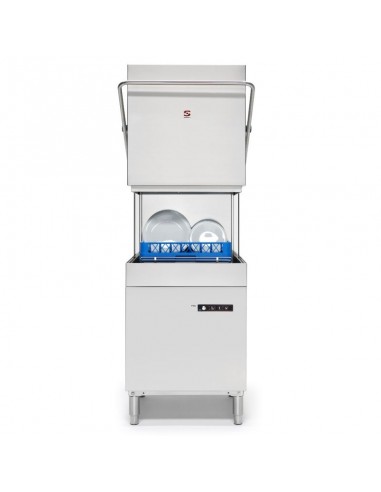

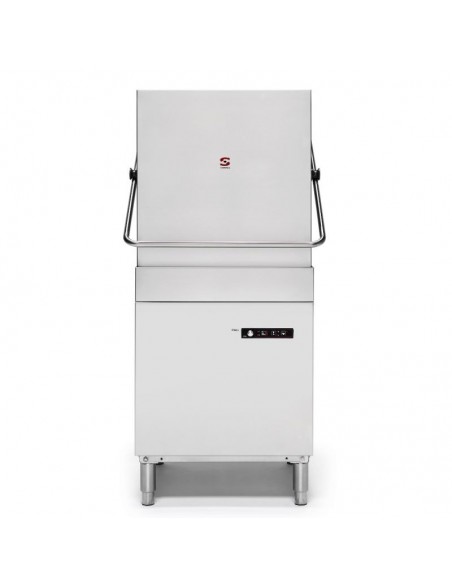

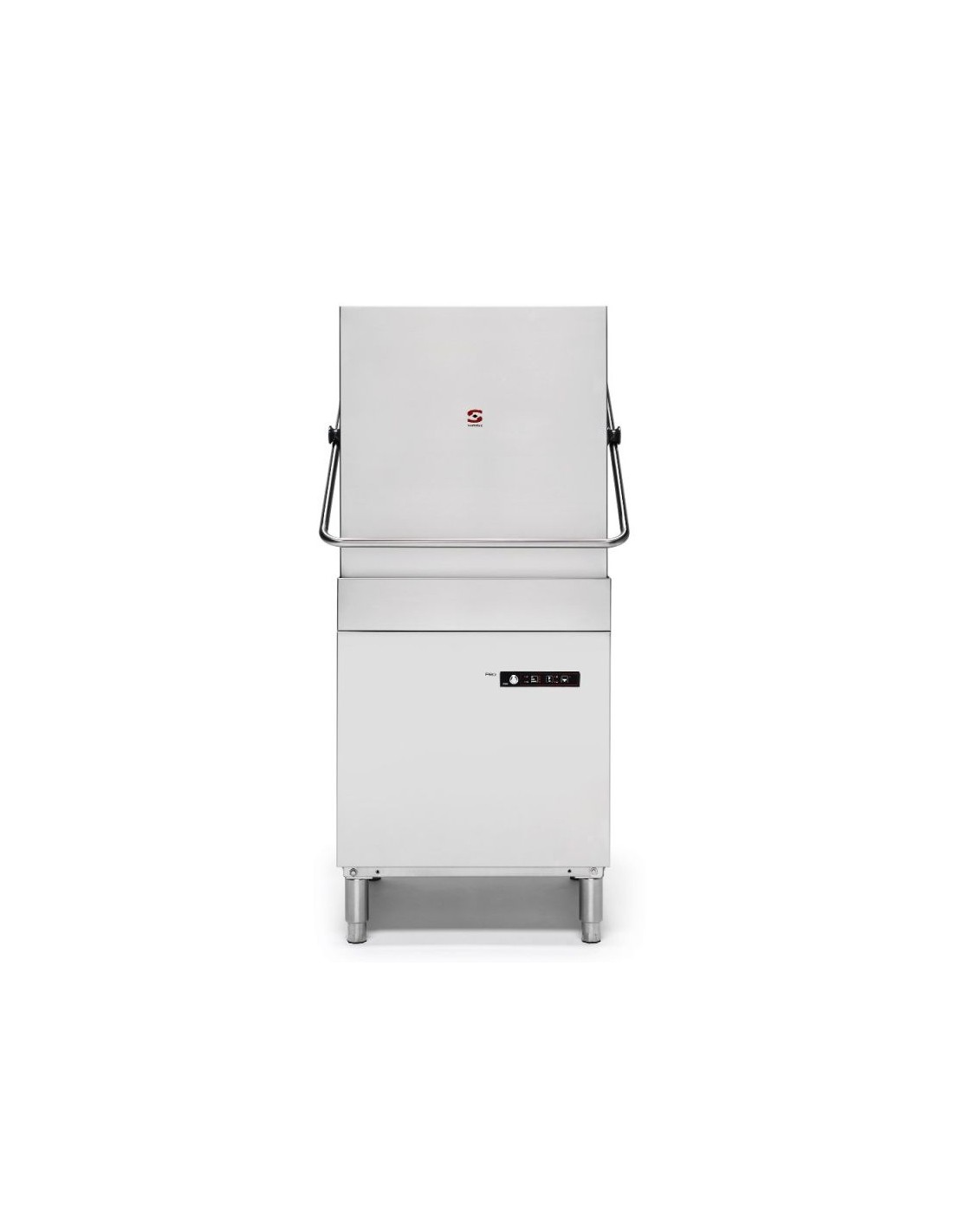

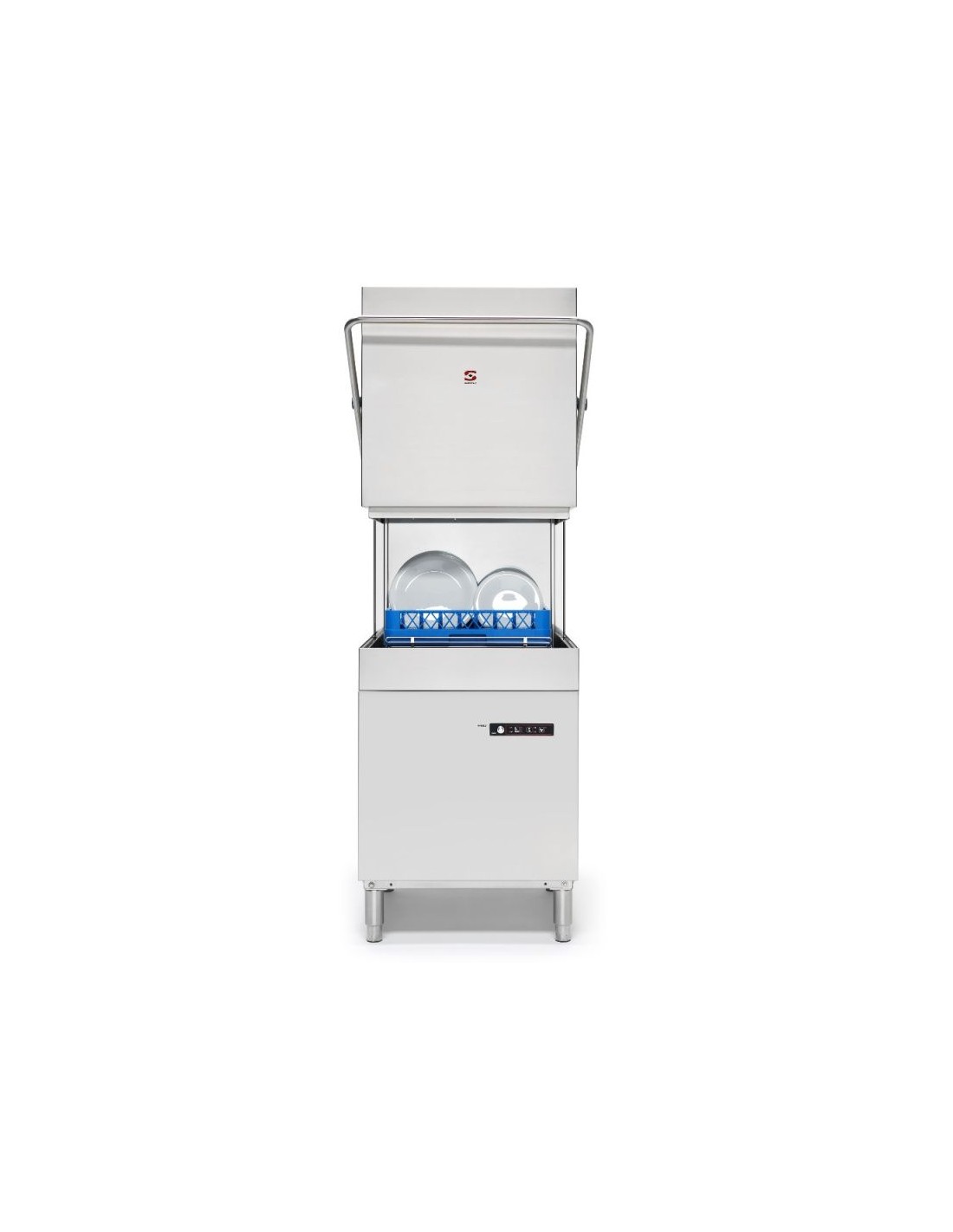

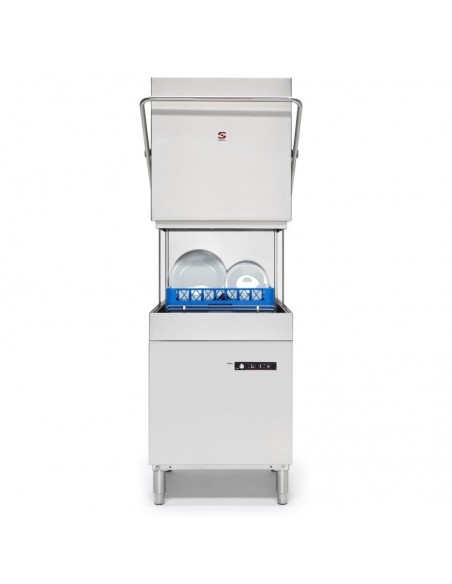

Sammic P-100B Passthrough Dishwasher

The Sammic Pro P-100B Passthrough Dishwasher is a user-friendly commercial dishwasher that has 3 wash cycles with a thermal cycle delay option included. This hood type dishwasher for both straight in line and corner situations making it suitable for washing trays, as well as all types of plates, cups, glasses and cutlery. The unit is manufactured from 304 stainless steel and incorporates high quality components, with a top tank filter system is also included. Precision positioned water jets guarantee optimum washing results for even the most stubbornly stained glasses. With a thermal cycle delay option that guarantees a minimum final rinse temperature of 85ºC for every rinse cycle.

• Supplied with rinse aid doser, detergent dosing equipment, 1 open basket, 1 plate basket and 1 cutlery basket.
• A hood type dishwasher for both straight in line and corner situations -suitable for washing trays, as well as all types of plates, cups, glasses and cutlery.
• Professional washing with double system of rotating wash and rinse arms top and bottom.
• Hood operated, auto cycle star. 3 wash cycles.
• Manufactured from catering grade AISI 304 2B stainless steel and incorporating top quality components.
• The inside of the machine features rounded corners, the elimination of angles avoiding the accumulation of dirt.
• Precision positioned water jets guarantee optimum washing result for even the most stubbornly stained glasses. Easy to assemble, boltless rinse spray arms.
• A double filter system provides effective wash pump protection that is easily removed (for maintenance and cleaning) and replaced, without tools.

• A magnetic micro-switch stops the wash cycle, in the event of the hood being raised prematurely.
• Standard features include adjustable feet for levelling.
• A stainless steel, top of tank filter system is also included as standard.
• Rinse aid dosing equipment.
• Adjustable washing tank and boiler temperature and security in the boiler.
• Thermal cycle delay option, guaranteeing a minimum final rinse temperature of 85ºC for each and every rinse cycle.
• Sammic ware washers are designed for easy and fast on-site maintenance.
• 100% tested.

• Basket Dimensions: 500 x 500mm
• Maximum Glass Height: 400mm
• Cycles: 3
• Cycle Duration: 120"/180"/210"
• Production Baskets/Hour: 30/20/17
• Boiler Capacity: 10ltr
• Wash Tank Capacity: 40ltr
• Water Consumption/Cycle: 3.5ltr
• Pump: 750W/1Hp
• Tank: 2500W
• Boiler: 6000W
• Total Loading: 6750W
• Noise Level: <70 dB(A)
• Power: 230v/50hz/single phase
• Dimensions: 1468(H) x 640(W) x 756(D)mm
• Weight: 115 KG
