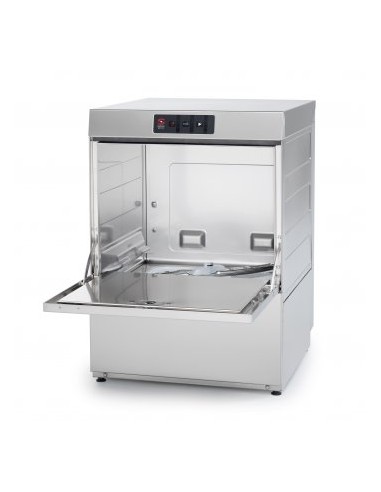

Sammic AX51Front Loading Dishwasher

Multi-phase dishwasher:

• 230V / 50Hz / 1~ (standard)
• 400V / 50Hz / 3N~
• 230V / 50Hz / 3~

• GUARANTEED DISINFECTION in compliance with standard DIN 10534.
• THERMAL LOCK function: Ensures that rinsing will be carried out at the ideal temperature to disinfect the dishes.

• Ergonomic design with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
• Compact tank volume (50% water saving compared to the previous range).
• Embedded basket guides

• Redesigned nozzles for greater washing performance.
• The "monoblock" design delivers durability and resistance to impacts.
• 30% savings in water consumption during rinsing compared to the previous range.

• Keeps the washing water in optimal conditions to maintain constant washing performance.
• The surface filters feature an "easy-on" design and can be quickly removed without having to disconnect the washing arms.

• The integration of the components provides greater resistance and robustness.
• Designed to have no corners or areas that are difficult to access: prevents deposits of dirt and facilitates cleaning.
• Its ergonomic handle provides a perfect grip, even with wet hands.
• Double-walled door with safety microswitch and high quality seal
• 38 cm loading capacity: high versatility for washing a wide range of items: dishes, Euronorm trays, GN 1/1 tubs and pizza plates diam 39

• Ultra Xperience: high performance, without complications.
• Soft start: progressive start-up of the washing pump to protect fragile items.

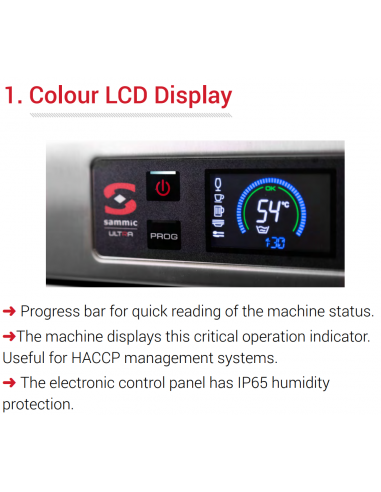

• Colour LCD Display: intuitive communication of the machine status by means of messages, colour codes and icons.
• Dedicated cycles: selection of the ideal washing programme using icons.
• Adaptable: allows the main parameters of the machine to be adjusted to the needs of each user.
• TEMPERATURE DISPLAY
• Wash Plus+ function: increases the intensity of the wash cycle for greater cleaning performance
• Control panel with IP65 humidity protection.

• Basket dimensions: 500 mm x 500 mm
  Maximum glass height: 380 mm

  Cycle duration: 90/110/120/180/240 "
  Production baskets/hour: 40/33/30/20/15

  Wash temperature: -- ºC - 65 ºC
  Rinse temperature: 65 ºC - 87 ºC

  Boiler capacity: 8 l
  Wash tank capacity: 14 l

  Consumption and savings

  Water consumption/cycle: 2.5 l
  Automatic saving mode in: 25 '
  Automatic switch-off: 120 '

  Loading

  Pump: 750 W / 1 Hp
  Tank: 1800 W
  Boiler: -- W (single phase) / -- W (multipower)
  Total loading: 2550 / 4550 / 5550 W (single phase) / -- W (multipower)

  Electrical connection: --

  External dimensions (WxDxH)

  • Width:580 mm
  • Depth: 635 mm
  • Height: 835 mm

  Net weight: 57 Kg
  Noise level (1m.): <69 dB(A)
